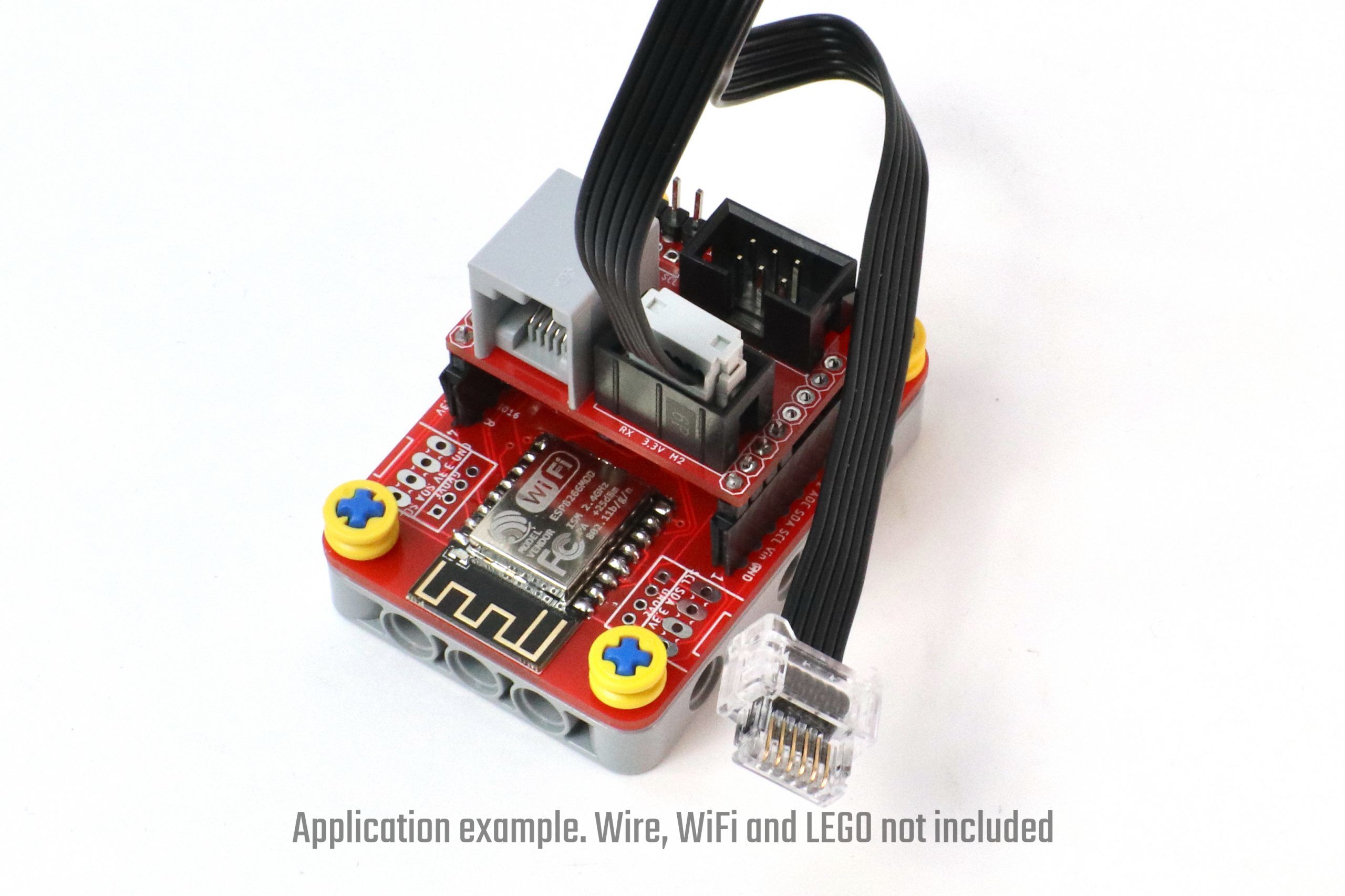

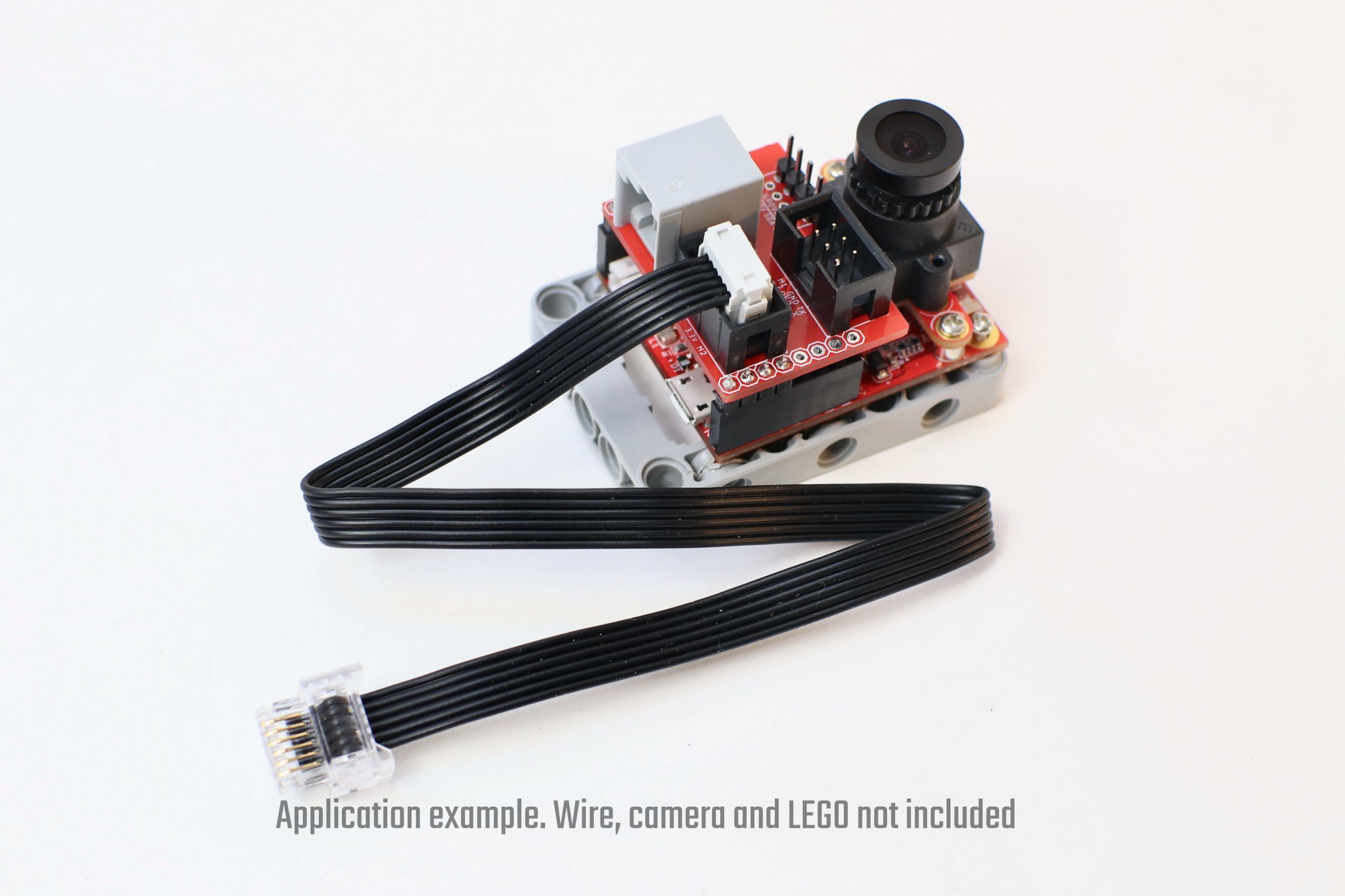

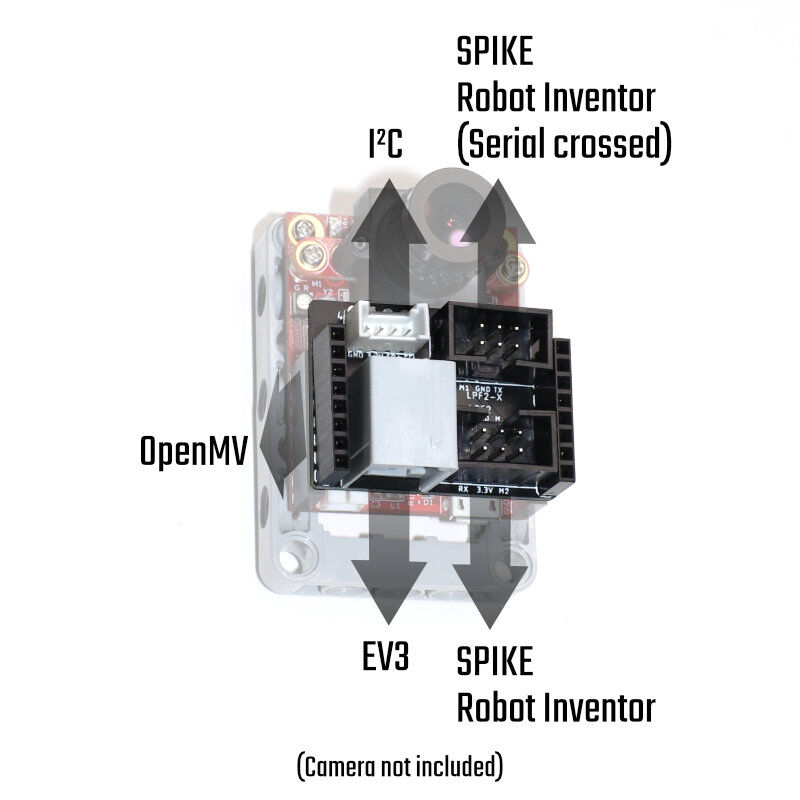

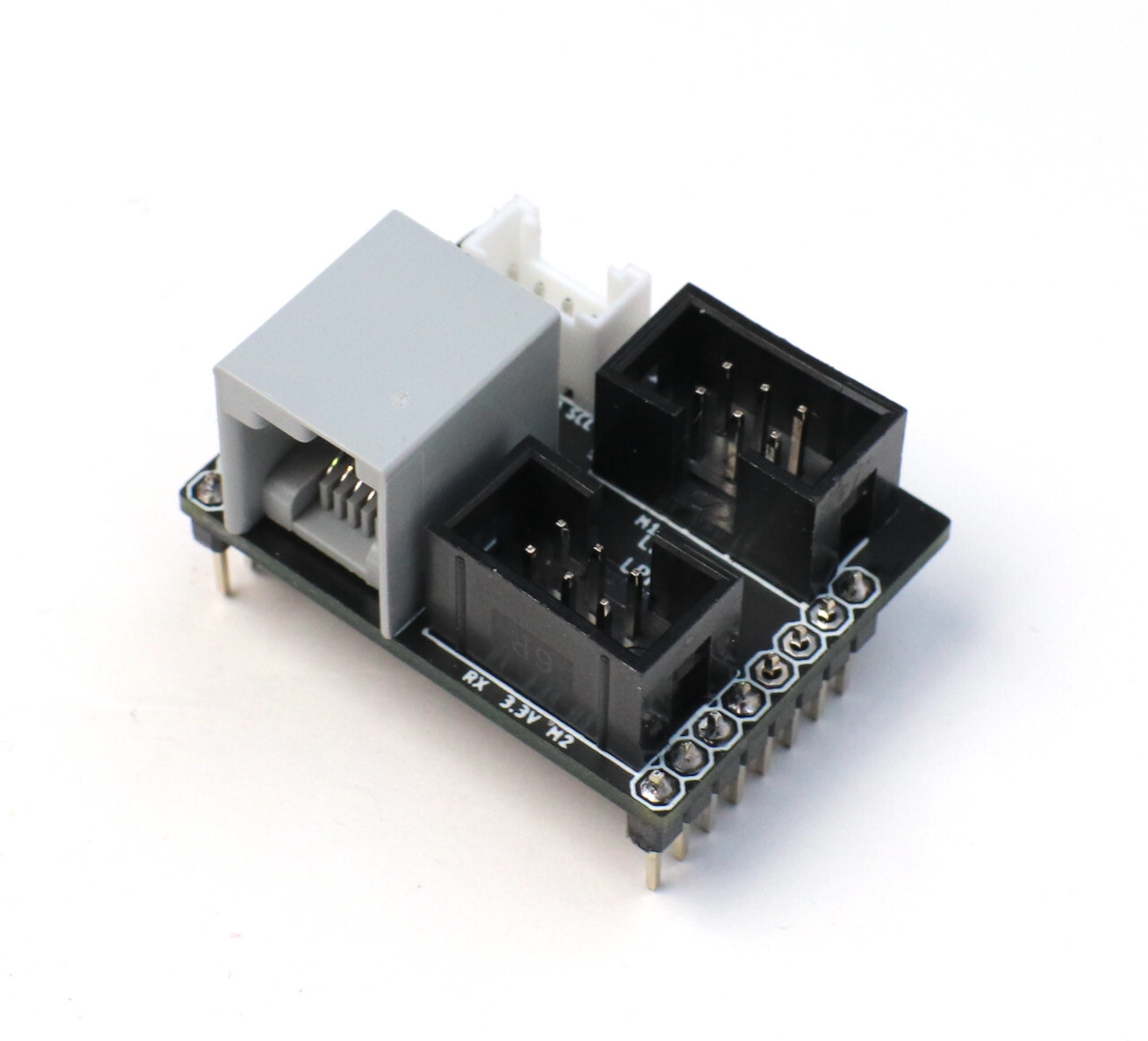

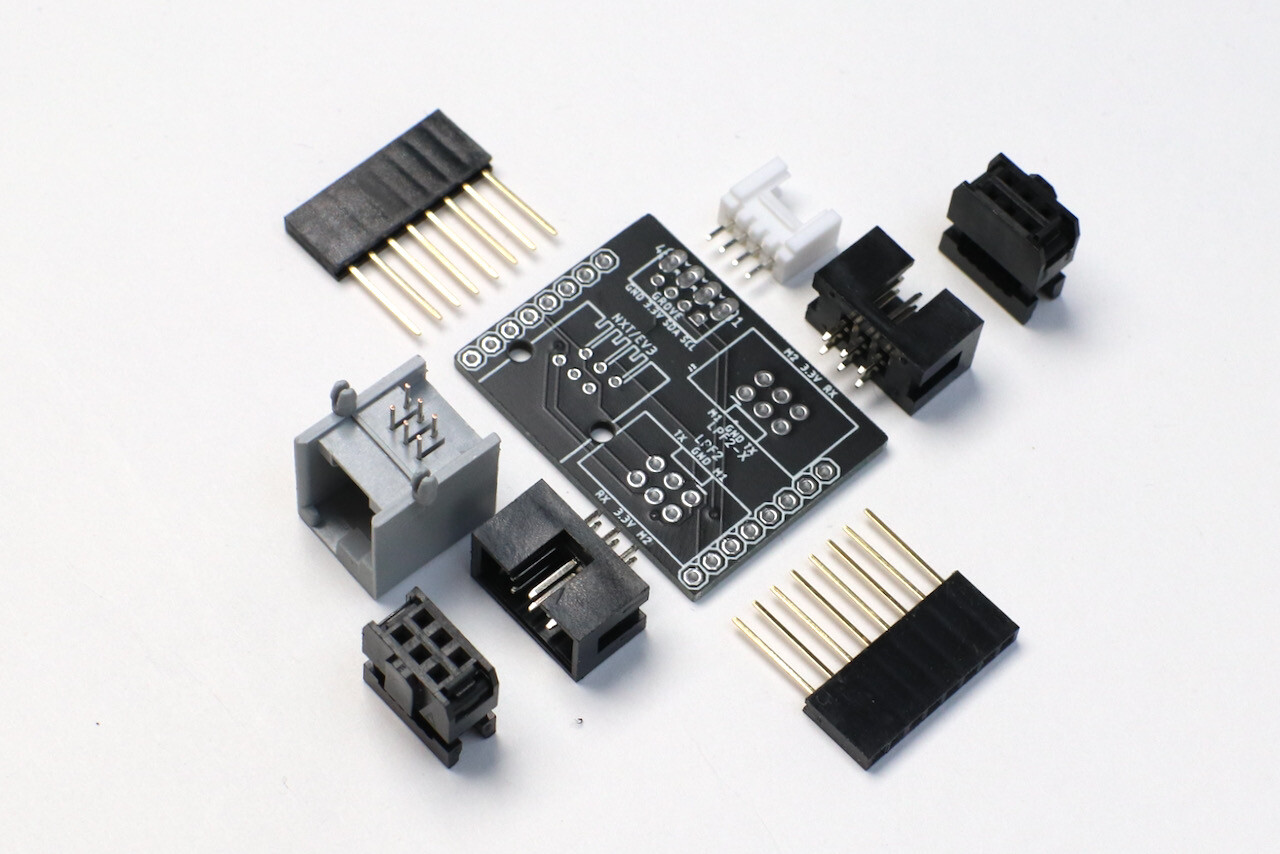

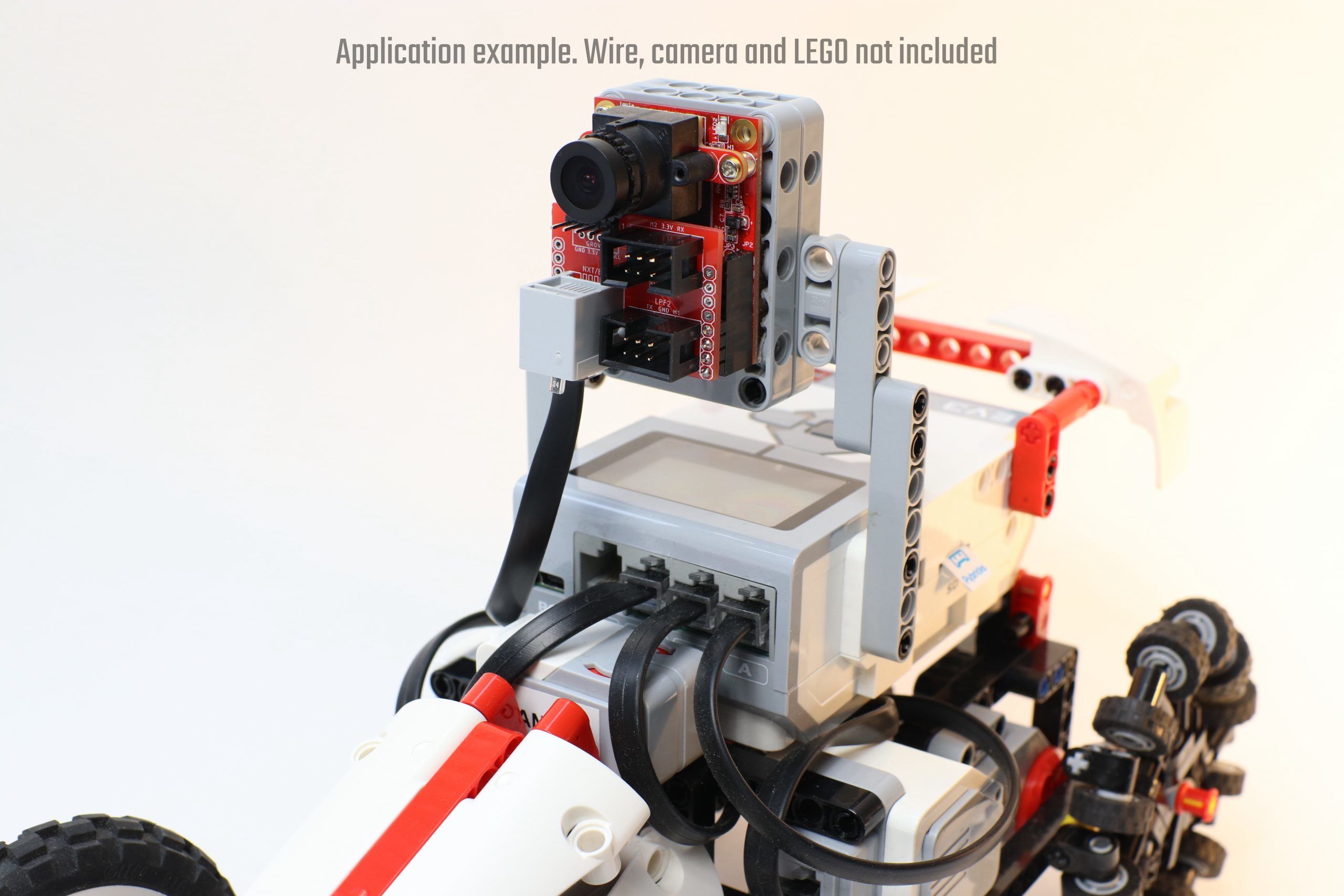

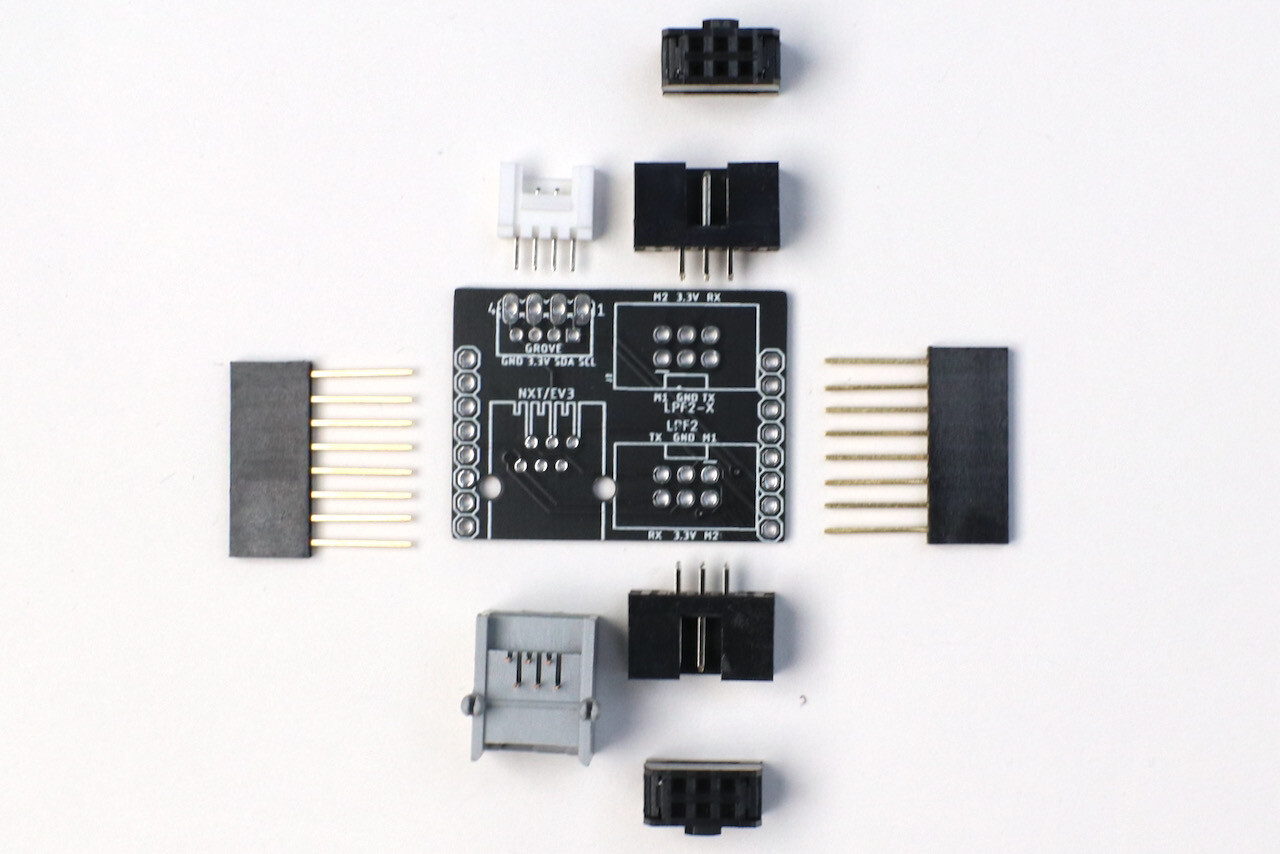

Home / Electronics / Uart breakout board for SPIKE and EV3 – OpenMV compatibleUart breakout board for SPIKE and EV3 – OpenMV compatible€12.50Pack size Choose an optionSingleClear Uart breakout board for SPIKE and EV3 - OpenMV compatible quantity Add to cart SKU: LMS-uart-convertor-1.0 Category: Electronics Description Additional information Reviews (0) DescriptionThis convertor board is the swiss army knife of uart connections for your LEGO MINDSTORMS EV3, Robot Inventor, and SPIKE Prime models. The LMS/SPIKE OpenMV converter connects your SPIKE Prime to your OpenMV camera board, or to the esp-i2c-wifi board.In the converter breadboard package you will find: 2×8 pin headers, 0.1 inch pitch a grove port 2x 6 pin ports 2x 6 pin plugs 1x Wedo 2.0 or LEGO Power Functions 2.0 wire.The 6 pin plug shrinks perfectly on a repurposed Wedo or Power Functions 2.0 wire, no tools needed! I ordered the wires online from China. One is included in the kit, you can order a second one yourself. Ultimate connectivity for all your LEGO bricksIn the wiki and projects repository, we are continuously adding manuals and example projects with this board. We haven’t made examples for everything yet, but with the design of the board, we had these connections in mind: SPIKE/RI to SPIKE/RI uart connection SPIKE/RI to EV3 uart connection SPIKE/RI to OpenMV uart connection EV3 to OpenMV uart connection SPIKE/RI to ESP WiFi board with i2c OpenMV i2c on pins 7 & 8 to grove or 0.1″ headersThe EV3/SPIKE OpenMV convertor board has the following applications: Connect a WiFi ESP board to your SPIKE Prime or Robot Inventor hub Connect an OpenMV AI camera to your SPIKE Prime, Robot Inventor or EV3 hub. Create wired communication between all your Lego Power Functions 2.0 and NXT/Ev3 devicesLMS-uart-convertor 1.0 pinoutIn the pinout, you can see that the board makes all uart rx/tx connections. The I2C connections require a board below this board. That could be an OpenMV camera or an ESP wifi board. LEGO smart hubs have internal resistors that mess with pull-up resistors in the most common i2c devices, so they are hard to connect directly. You can also use jumper wires and headers at the bottom of the board to connect LEGO line 6 to SDA and LEGO line 5 to SCL.Because motor lines (lines 1 and 2) can generate up to 9V, they are not connected by default. The board has soldering jumpers to connect them. The motor lines can be handy to power LED arrays that take a lot of current. Be careful not to fry any 4v7 or 3v3 logic when you do.Here’s one of my experiments where I use the board:Warning: there’s no warranty for this product!Soldering guide:DISCLAIMERWe have been very careful designing this breakout board, to make it near impossible to create connections that damage your LEGO. Nonetheless, incorrect usage of this board could damage your LEGO in such a way that your LEGO warranty is void. This is a hacker’s tool. We do not guarantee the safety of your LEGO hubs or any electronic devices you connect with this breakout board. Do not use voltages higher than 9v, for your safety and the safety of your electronics. Making the right connections is your responsibility. This product is provided ‘as is’ without warranty of any kind, either express or implied, including, but not limited to, the implied warranties of fitness for a purpose, or the warranty of non-infringement. Buying this product means you agree with this disclaimer.Additional informationWeight0.05 kgDimensions10 × 10 × 1 cmPack sizeSingle, Three Pack ReviewsThere are no reviews yet. Be the first to review “Uart breakout board for SPIKE and EV3 – OpenMV compatible” Cancel replyYour rating *Rate…PerfectGoodAverageNot that badVery poor Your review *Name *Email * Save my name, email, and website in this browser for the next time I comment. Notify me of new posts by email. ΔRelated products WiFi Python LMS-ESP32 board for MINDSTORMS (LMS-ESP32-v1.0)0 out of 5 €36.00 – €72.00 Select options Distance Sensor Breakout board for SPIKE Prime and Robot Inventor5.00 out of 5 €10.00 €8.00 Add to cart 5 x 6 RGB ws2812 Neopixel LEDS for MINDSTORMS0 out of 5 €12.00 – €36.00 Select options
